TD-MC710金属波齿垫通过模压、滚压或车削等工艺把金属平环加工成同心的波形圈，表面粘贴膨胀石墨或四氟等非金属，与TD-KF710金属齿形垫相比，其内衬金属可选择多种的厚度，如3mm, 2mm等，且金属波距根据密封面的宽度不同而不同，一般为3mm, 4mm,6mm

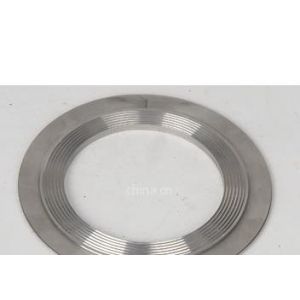

TD-MC710 Corrugated metal gasket the gasket consists of a metal core with concentric grooves on both sides, coated with expanded graphite or PTFE layer. The thickness of metal can be thinner, e.g. 3mm, 2mm, 1mm, 0.5mm, compared with TD-KF710 Kammprofile gasket, and the corrugation pitch is 3mm, 4mm or 6mm depending on the width of the sealing face.
在法兰及交换器装置中已被证明，能提供可靠***密封，尤其是在大尺寸的烟、气管道，低压、高温，或扭曲不平的法兰中，更显有效。也能解决非金属垫片在大尺寸场合不易安装及使用的难题。
TD-MC710 have been proven to be both reliable and cost-effective for flange and heat exchange application, especially used in low-pressure applications in large diameter flue gas ducts at high temperature, also suitable for uneven or distorted sealing surfaces. It eliminates the problem of difficult handing with large non-metal gaskets used in those applications.
可选材料MATERIAL：
| 金属材料 Metal material | 德国牌号 Din Material No. | 硬度Hardness HB | 温度Temperature (℃) | 密度Density g/cm3 | 厚度 MM Thick |
| 碳钢 | 1.1003/1.0038 | 90~120 | -60~500 | 7.85 | 2 3 4 |
| SS304, SS304L | 1.4301/1.4306 | 130~180 | -250~550 | 7.9 |
| SS316, SS316L | 1.4401/1.4404 | 130~180 | -250~550 | 7.9 |
